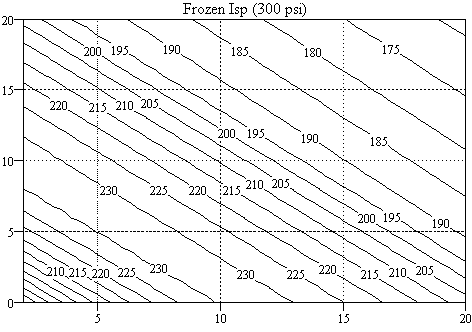

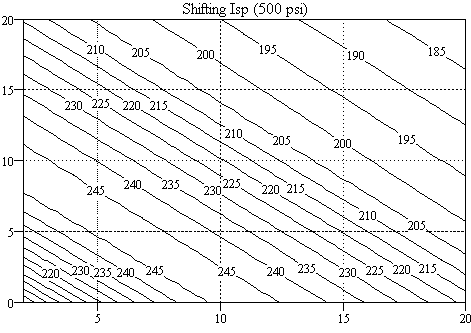

Liquid Propellant Specific Impulse Prediction:

Assumptions:
Optimaly expanded nozzle;
No nozzle losses;

This work was performed by the author, Chris Krstanovic, in 1996. The above charts are copyrighted and may NOT be reproduced without prior consent from the author.

For comments, suggestions or questions , Chris Krstanovic.
